Since this involves a pilot plant, various cases had to be simulated. Robox was able to provide excellent service to the client because all the necessary knowledge and software are available in-house to perform these simulations reliably.
The end customer has a significant number of specifications regarding design, material testing, and inspections. Furthermore, the heat exchangers had to be provided with a U-stamp. Robox combined all requirements and wishes and outsourced the U-stamp work. Robox managed this process, unburdening the client. Ultimately, this allowed for the delivery of a package that met all requirements and specifications.

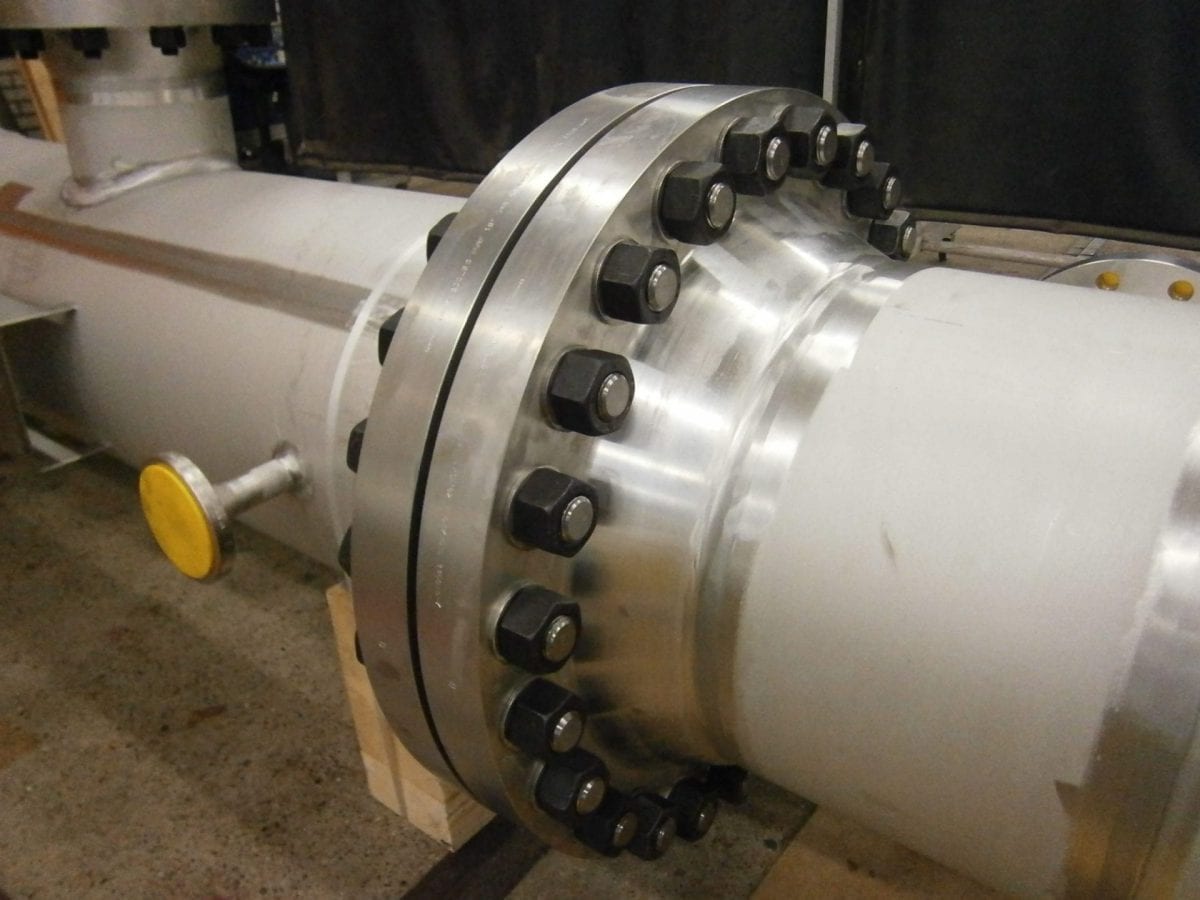

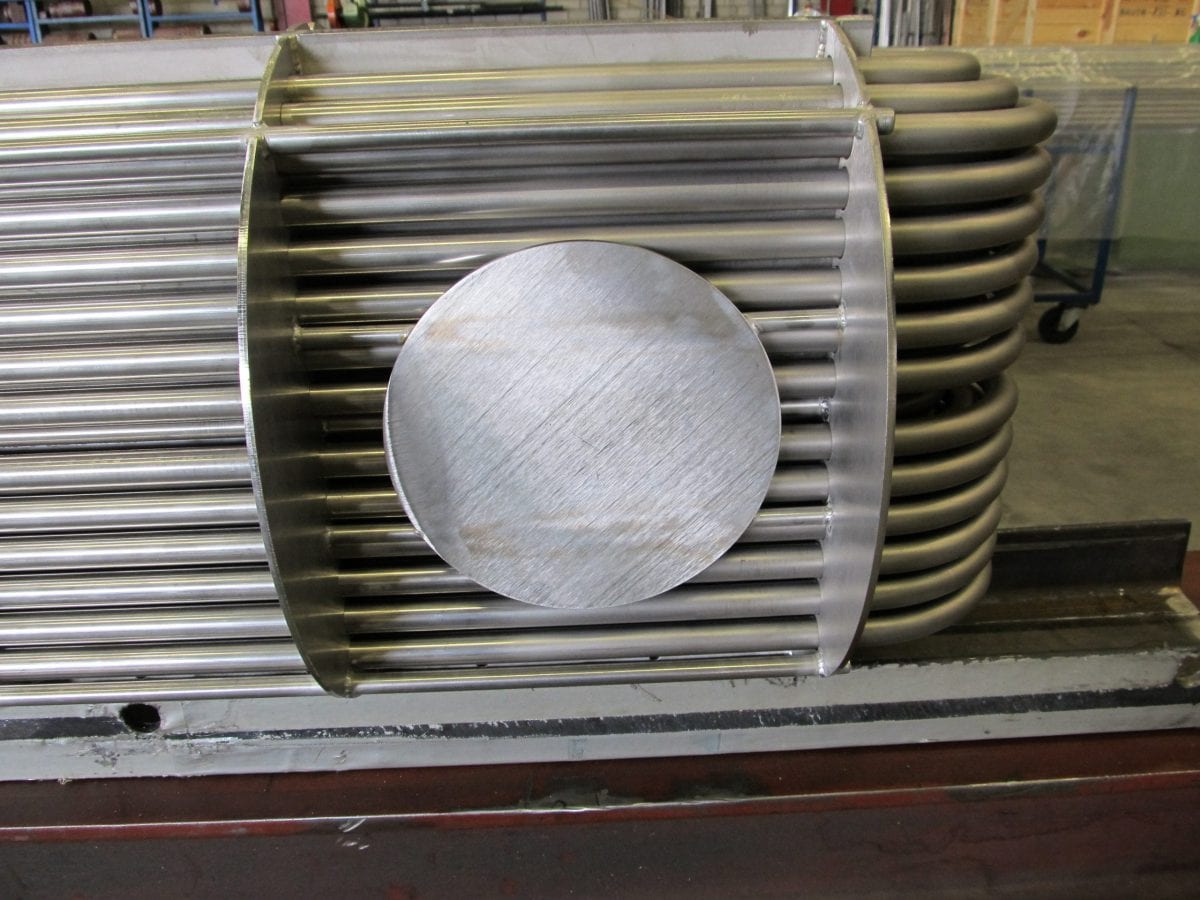

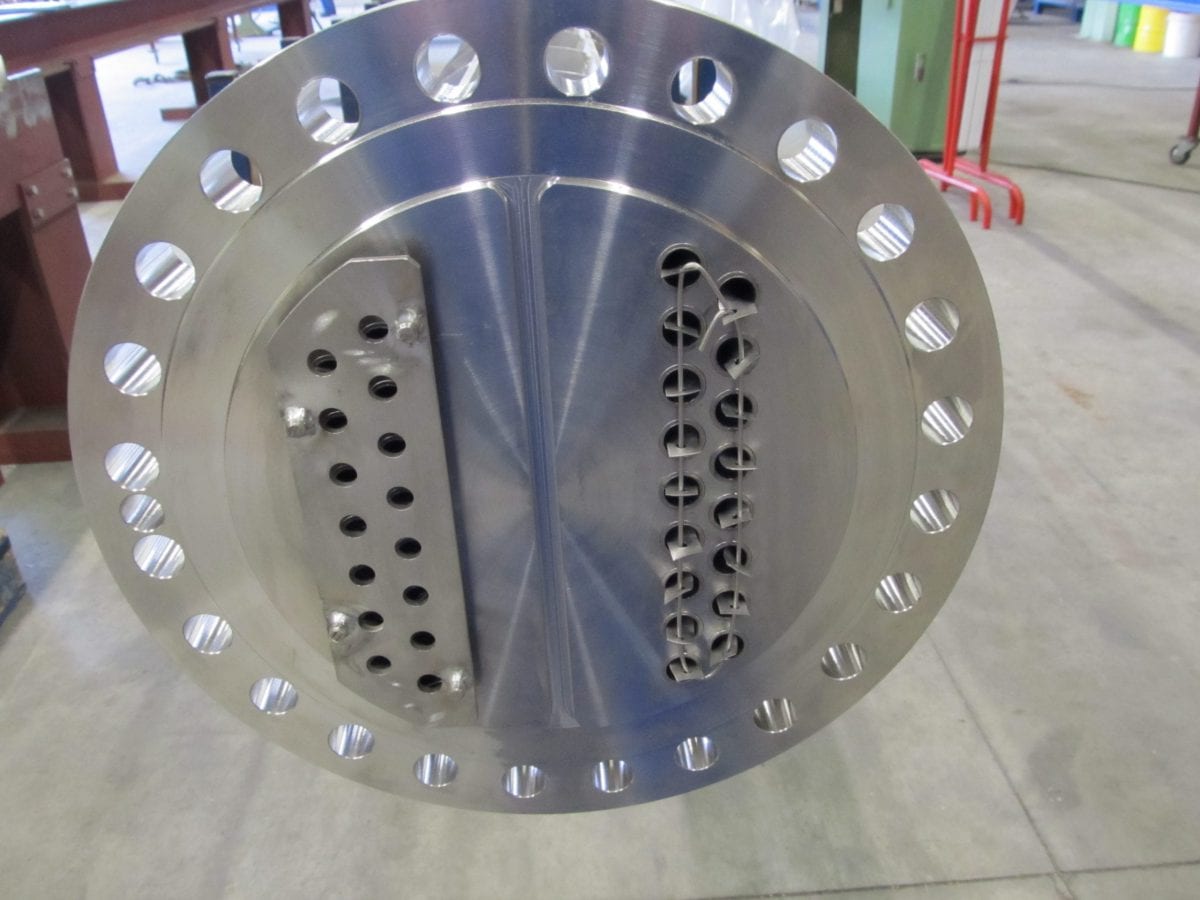

All coolers have a single-pass shell, removable U-bundle, and a removable bonnet type header, TEMA types BEU. Tubes in stainless steel 321, shells and covers in stainless steel 321/304/316(L). Designed and built according to PED cat. IV/Mod.G and ASME VIII Div.1 (with U-stamp), TEMA R, and NACE MR 0175.
