Mobile depletion Unit ”(MWHC). This unit enables our customer to also extract the last remaining gas from a well. The unit is mobile so that multiple wells can be operated with the same unit.
The gas pre-cooler is a gas cooler in which the gas is pre-cooled with refrigerant to compensate for the temperature rise in the compressor. The gas outlet cooler cools the gas at the outlet to the end temperature specified. The lube oil cooler is a liquid cooler that keeps the compressor’s lubricating oil at the desired temperature.
When the earlier “Mobile depletion units” proved successful, it was decided to design another unit (MWHC 2.0). The processes were adapted to parts, which led to a more compact unit. The choice of materials and the application of the specifications have also been adjusted slightly downwards in order to achieve cost reduction. This has resulted in substantial savings without losing sight of quality.
at Eltacon Engineering BV
“As a developer of gas treatment and gas compressor installations, we regularly need equipment that does not fit within the thirteen-in-a-dozen type. We work on a project basis and often have special requirements with regard to design, materials and dimensions for the heat exchangers. In addition, we often have to deal with additional specifications and requirements from our customer. ROBOX can provide this, enabling us to meet the often far-reaching specifications and strict requirements of our customers.
What we especially appreciate about the cooperation with ROBOX is that they are very flexible. This also has everything to do with the customer’s package of requirements. Sometimes the development process takes a long time, the design is changed again or our customers still have additional requirements. ROBOX always responds very reasonably to this and they think along to make the process run as efficiently as possible.
This efficiency is reflected in ROBOX’s entire business operations: communication is correct and adequate, agreements are kept and products are delivered on time. These products are developed with great care and expertise. Exactly what our sector and our customers need. ”

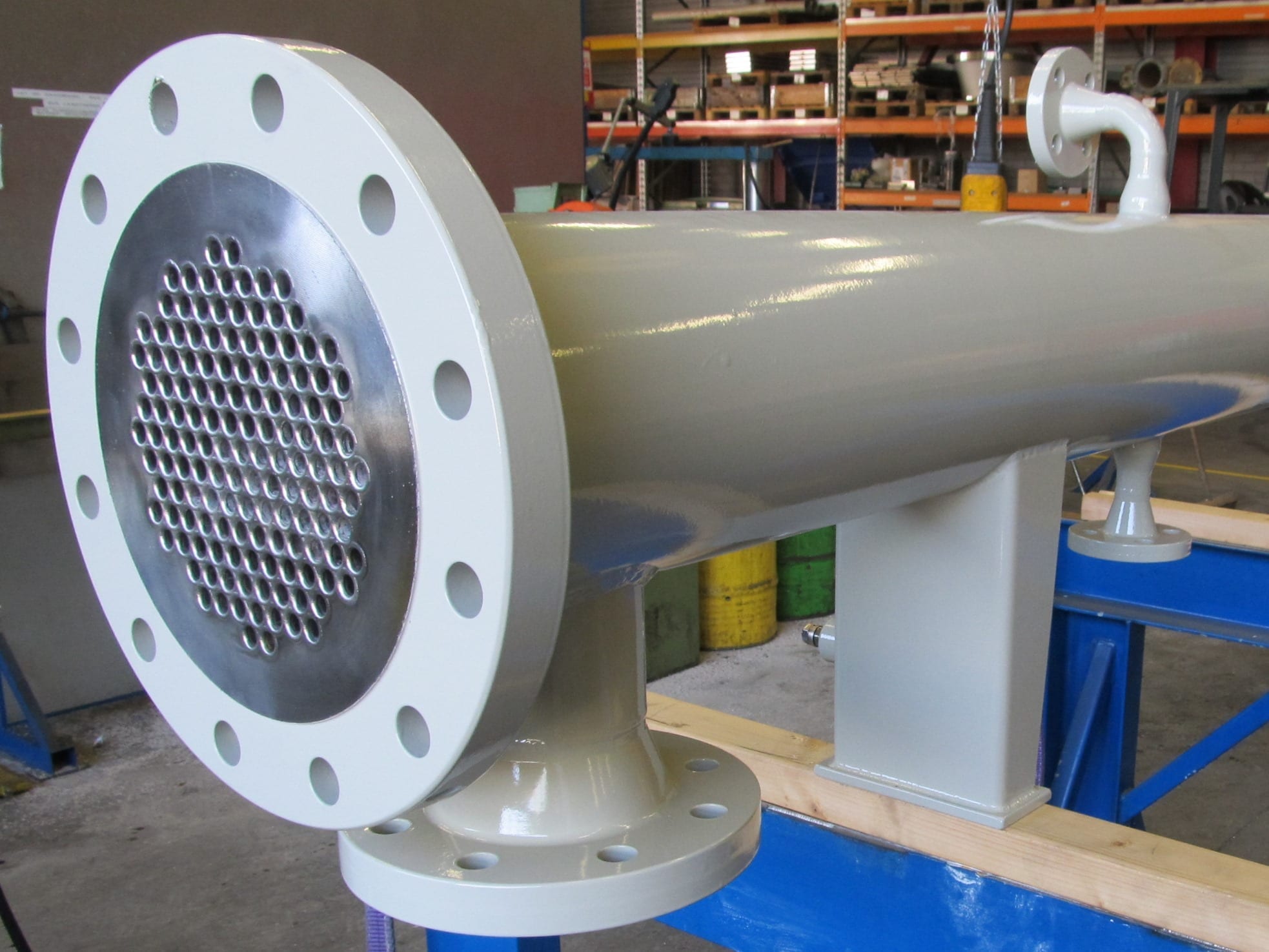

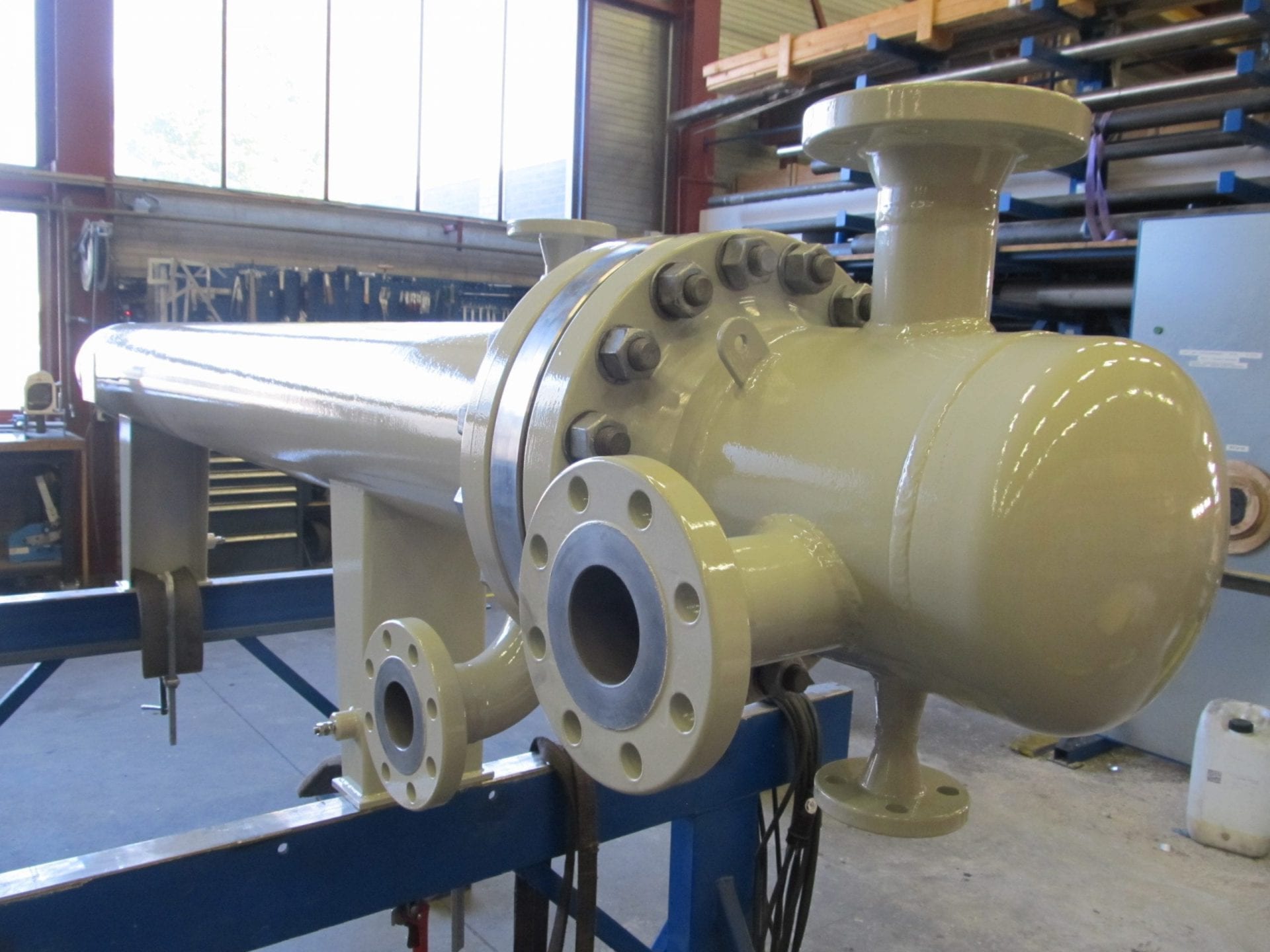

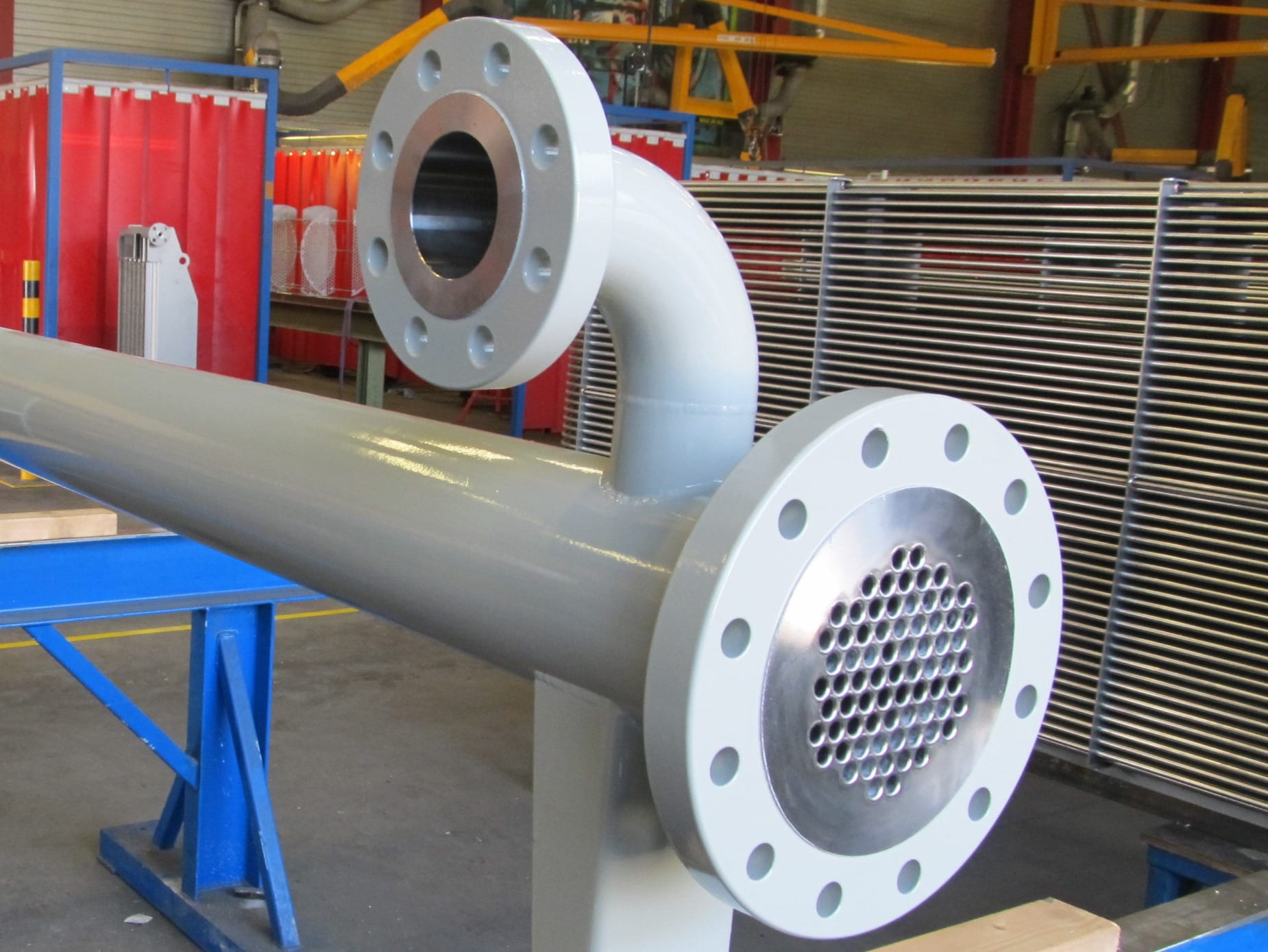

The gas coolers are horizontal, one-pass shell, Shell & Tube heat exchangers. Fixed tubesheets without bonnets, directly incorporated into the pipework. _EM 219/2500 and _EM 168/2400. Entirely in stainless steel 316 (L). The oil cooler is a horizontal one-pass shell with removable U-bundle and removable bonnet type BEU 273/2400. Made from stainless steel and carbon steel. According to PED 2014/68 / EU (Cat. II, III) and ASME VIII Div.1
