Purge Air to Water Exchanger (P5155)
Classificatie
Gas cooler, Shell & Tube, removable u-bundle, removable bonnet header.
Kenmerken
Turbine application where purge air must be cooled. Compact cooler for integration into the customer system with low pressure loss.

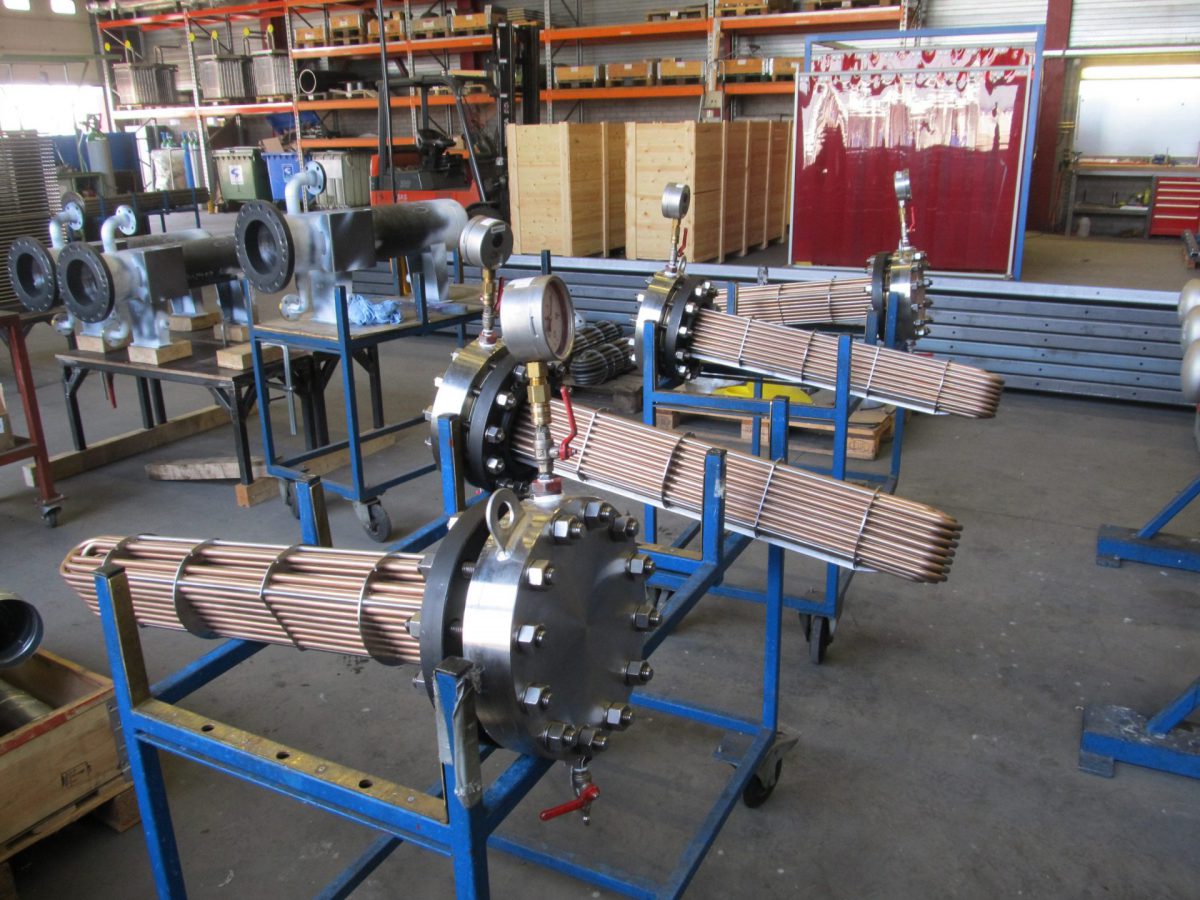

The air is cooled by using cooling water that passes through the tubes of the U-bundle. The air passes through the hull where, due to pressure loss, a no-tubes-in-window design with side-to-side flow has been chosen. Robox was able to serve the customer by meeting the requirements for pressure loss and installation dimensions.

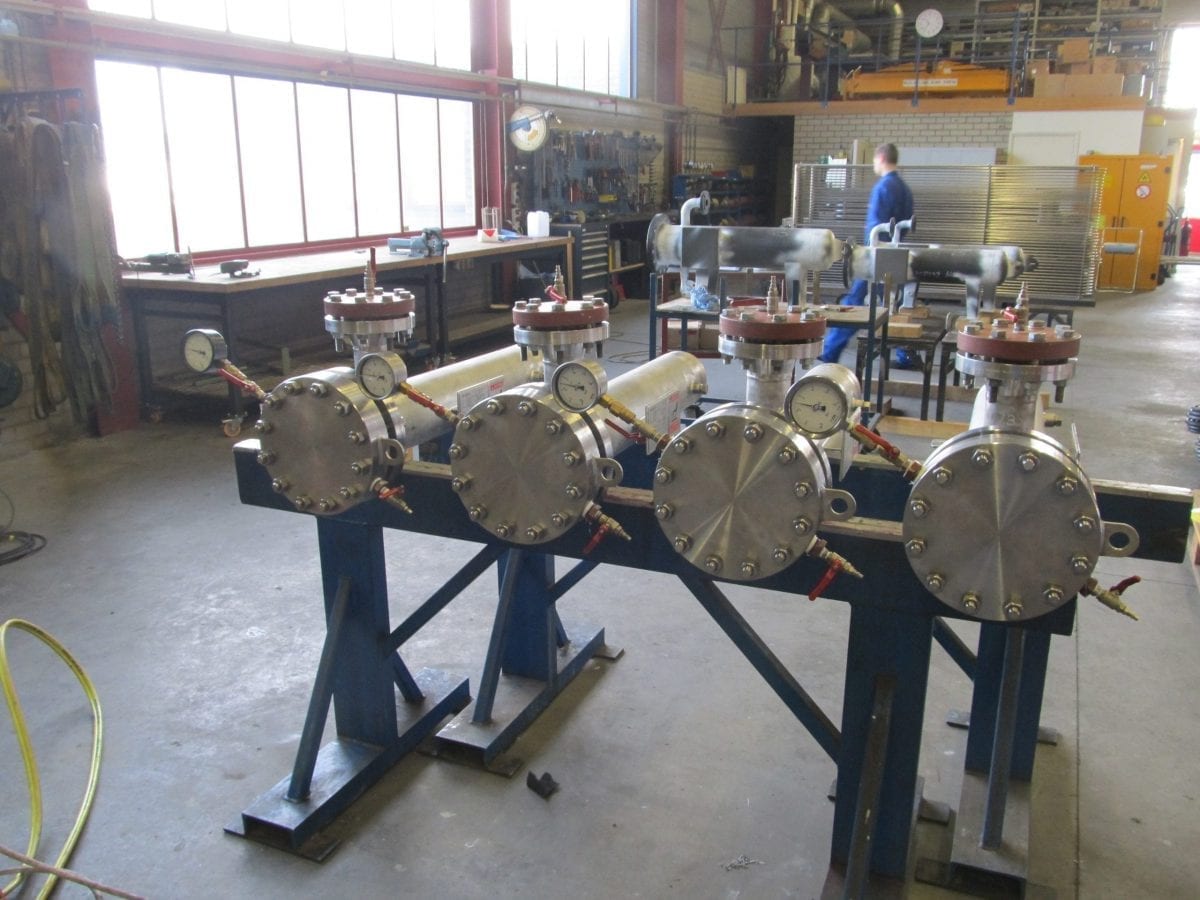

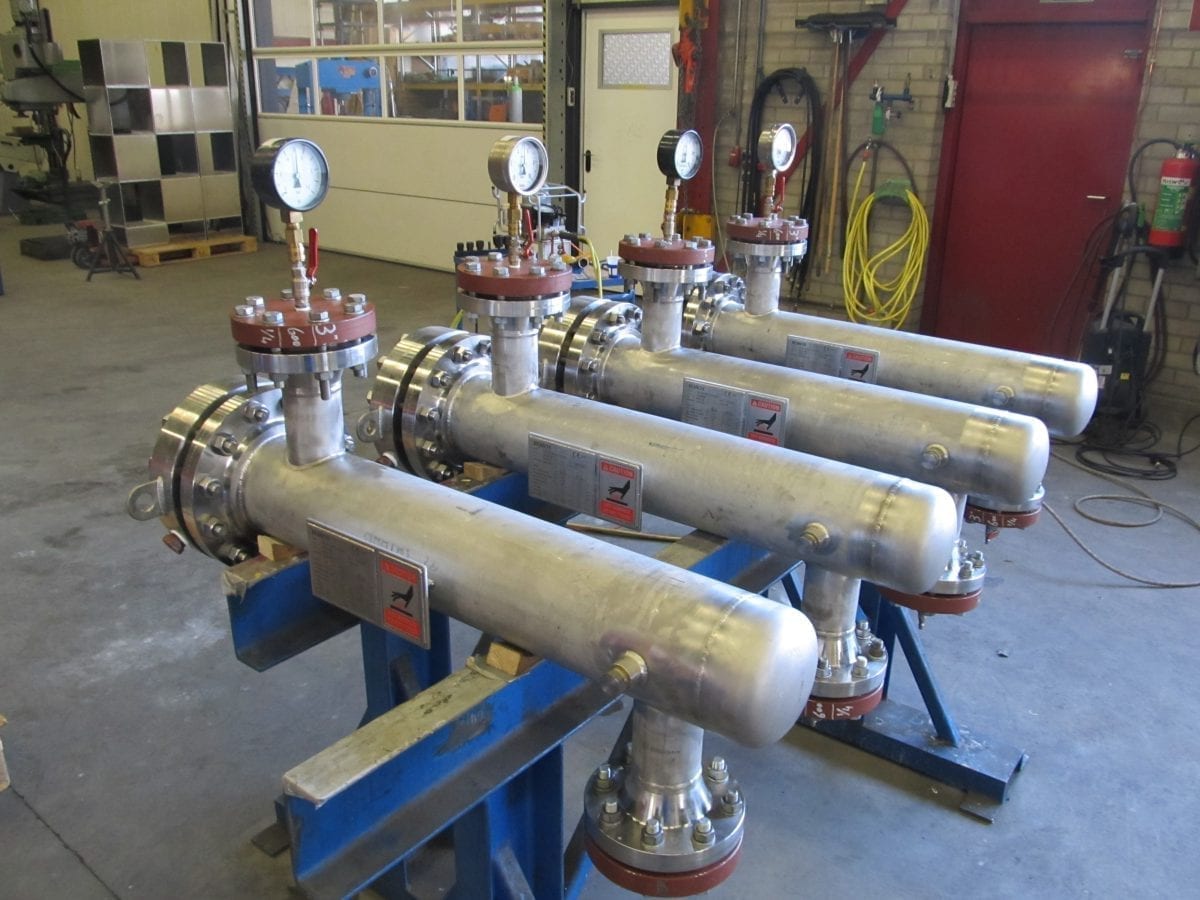

It concerns a Shell & Tube heat exchanger. A one-pass shell with U-bundle and removable bonnet header. TEMA type BEU 168/900 made of stainless steel with CuNi 90/10 tubes and mint metal tube plate. Designed and built according to PED cat. II / Mod A1 + ASME VIII div.1
