Process water Cooler & Overhead Gas Cooler
Classificatie
Liquid and gas cooler, Shell & Tube, removable u-bundle, inlet channel with removable cover.
Kenmerken
Pump application where the overhead gas and the process liquid must be cooled.
For a Scandinavian end customer in Oil & Gas, a German system builder needs these coolers for the assembly of the system.
For a Scandinavian end customer in Oil & Gas, a German system builder needs these coolers for the assembly of the system.
The cooling of the gas and the liquid is done in both Shell and tube exchangers by the use of cooling water that passes through the tubes of the U-bundle. The process flows go through the hull, whereby a no-tubes-in-window design with side-to-side flow has been chosen for the gas cooler because of pressure loss and vibrations. Robox was able to serve the customer by meeting the high demands and tough specifications of the end customer.

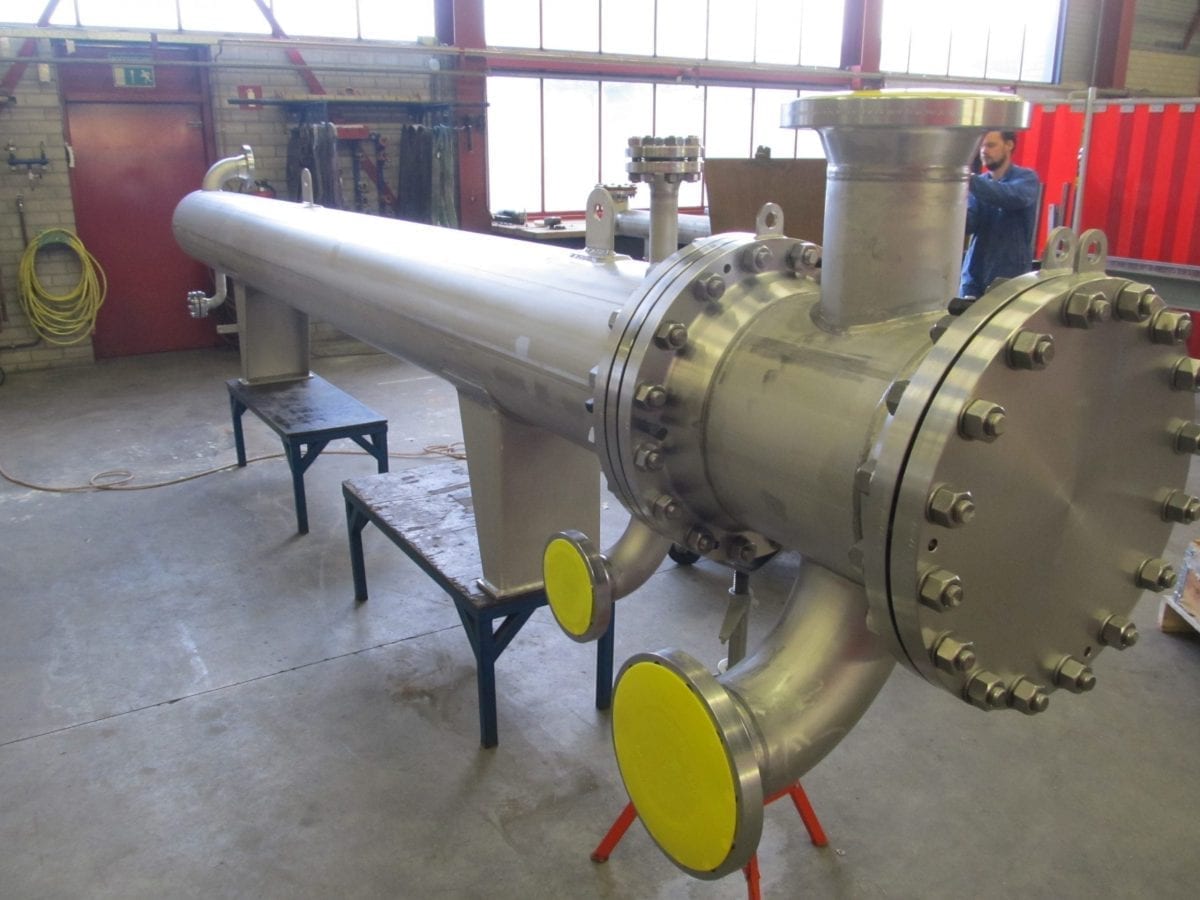

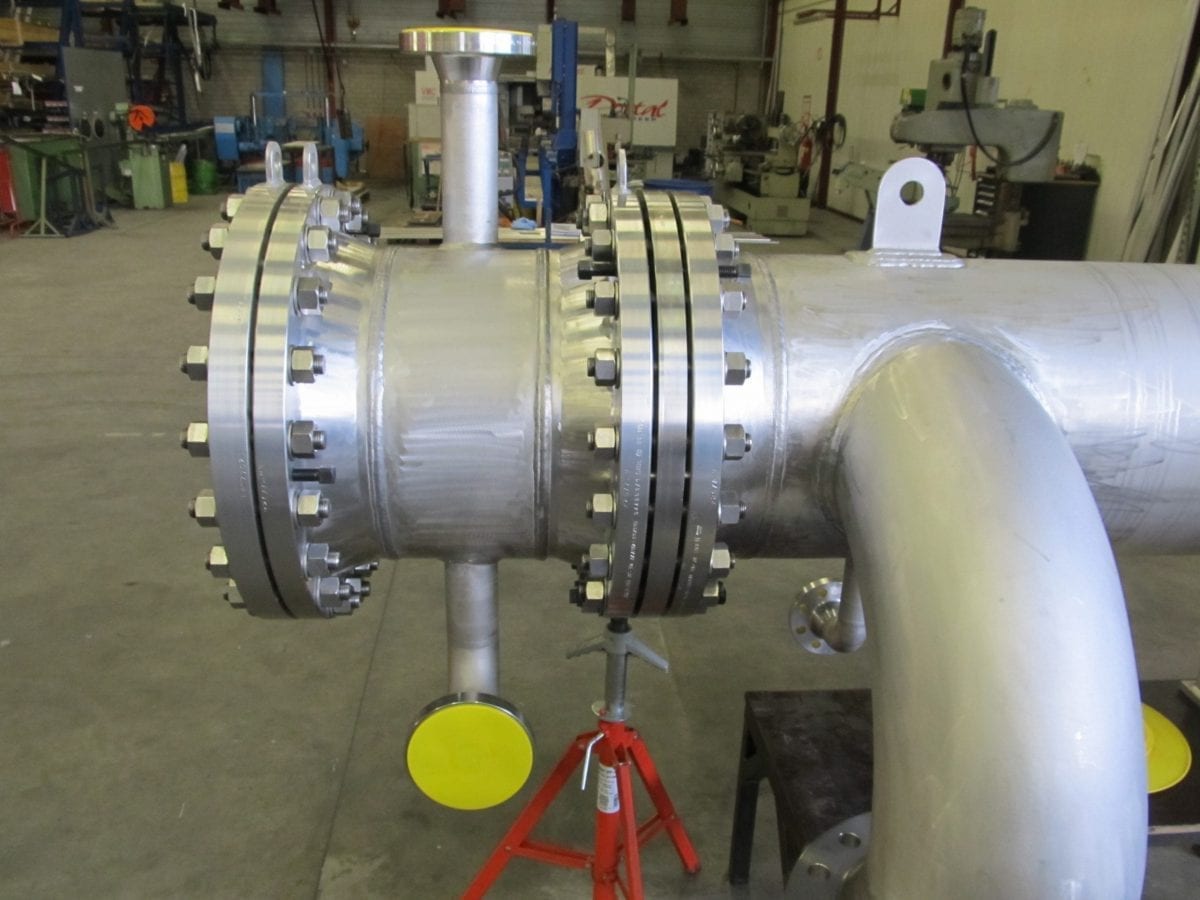

It concerns Shell & Tube heat exchangers. A one-pass shell with U-bundle and removable channel with cover plate. TEMA type AEU 457/5000 and AEU 508 / 4400. Entirely made of stainless steel. Designed and built according to PED cat IV / Mod H1 + ASME VIII div.1, TEMA R and NACE MR0103.
